Slat Conveyor

Slat Conveyor

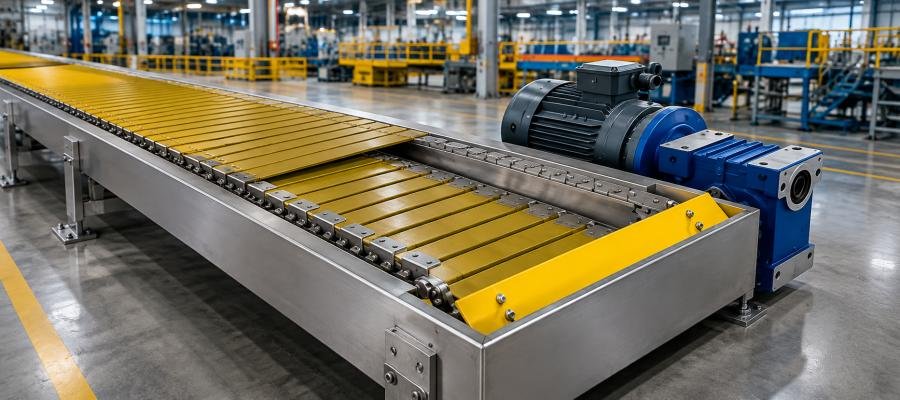

Slat conveyors use a slat and chain system to move components along an assembly line. They are often used where production operations are performed with the parts located on the conveyor. Steel panels are attached to the chain with special chain attachments, and the chain is driven by an electric motor and gearbox. Therefore they are one of the most commonly used types of conveyor for moving parts along an assembly line while the work is being performed. They are ideally suited to applications where components are being assembled onto a fixture located at an ergonomic working height. Slat conveyor systems also allow production assembly operators to work on one or both sides of the line. Fixtures can be added to the slats to enable parts to rotate 90, 180 or 360 degrees to facilitate better ergonomic access. In automotive plants, a slat conveyor system may be used to convey parts like instrument panels, center consoles or door trims. They are also used for engine and power-train assembly.

Technical Specifications

Depending upon the conveying application, different lengths, widths, height, controls and accessories are available to meet the needs. Slats can be made from mild steel, stainless steel or plastic. In some cases the product sits loosely on top of the slats, and in other cases the product is mounted to one or more fixtures. Some typical specifications are shown below, with many more combinations available:

Specifications Value
Between Frame Width (Conveyor Width) 12″ – 108″
Speed Range 10 FPM – 60 FPM max speed
Speed Control Fixed or variable speed control
Structure / Support Adjustable legs
Movement Type Continuous or indexing movement from station to station
