Modular Plastic Belt Conveyor

Modular Plastic Belt Conveyor

SERIES: M 8 0 - 3 0 0 - E D - M D

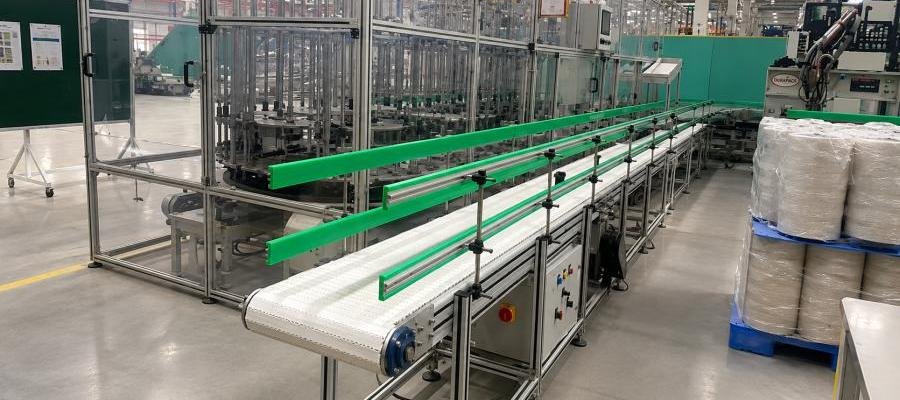

Modular belt conveyors are an extremely robust solution for most transport applications. The belts are hard-wearing, and with the correct specified material, they can be used for the transportation of sharp-edged products. The easy-to-clean design is the ideal solution for direct food applications or areas where chemicals are used. The positive drive on modular belt conveyors increases reliability, whilst the materials used in its construction are ideal for wash-down environments. We also manufacture conveyor belts with traditional flat belting materials.

Specifications

Specifications Value
min/max length 500mm-20000mm
min/max width 150mm-2000mm
height 150mm-1500mm
inclination 30, 45, 60 Degree
frame material Fabricated MS, SS & AL extrusion
Belt material PP, POM, FDA Approved
Belt Type straight, curve, side flex, close, open
end diameter 30mm to 100mm

Conveyor Types

  • Straight
  • Incline
  • Curved
  • Vertical

Motor Mounting

  • Side drive
  • Bottom drive
  • Centre drive
