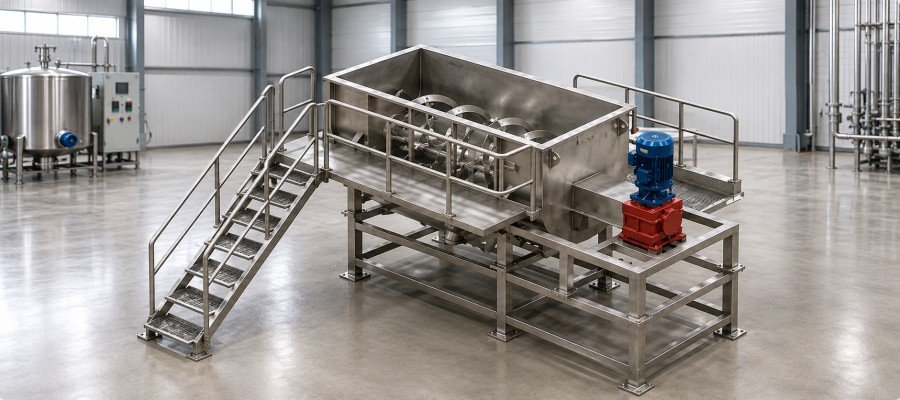

Ribbon Blender & Plough Shear Mixer
Ribbon blenders are primarily used to obtain homogeneous mixing of two or more products
in powder and granule form. Our double helical U-shaped ribbon blender is designed for
fast and efficient blending of dry powder, granules, and viscous paste with high
accuracy and reliability.
Key Features & Advantages
-
Mixing Mechanism: Inner and
outer helical ribbons move material in opposing radial and lateral
directions to ensure a homogeneous mix.
-
Ideal for solid-solid blending and coating
dry particles with liquids.
-
Advanced flush bottom discharge valve located
in the center for quick and complete emptying.
-
Available in multiple working capacities
ranging from 50 L to 12,000 L (operates best at 40% to 65% of total
volume).
-
Designed for both atmospheric and vacuum
operations.
-
Flexible material feeding options: Vacuum
loader, manual, or directly integrated from the process line.
Optional Features & Add-ons
-
Fluid coupling for smooth motor starts under
heavy loads.
-
Jacketed body for specialized heating and
cooling applications.
-
Liquid spray system integrated into top cover
for coating powders to granules.
-
Custom ribbon agitators for multiple
discharge positions.
-
Inspection and cleaning windows provided on
the main vessel body.
-
Manual or pneumatic operated butterfly
valves, slide gate valves, etc., for controlled discharge.
Parameters & Specifications
| Specifications |
Value |
| Available Types |
Horizontal Ribbon Blender / Vertical Ribbon Blender |
| Working Capacity |
50 Liters to 12,000 Liters |
| Optimal Fill Volume |
40% to 65% of total volume |
| Operation Environment |
Atmospheric & Vacuum Operation |
| Material of Construction |
Mild Steel (MS) / SS304 / SS316 |
| Discharge Valve Type |
Flush bottom valve (Manual or Pneumatic Butterfly / Slide Gate) |
Industry Applications
-
Pharmaceutical
Powders
-
Chemical
Compounds
-
Pigments &
Dyes
-
Pesticides &
Fertilizers
-
Food Powders &
Additives
-
Cosmetic Powders
-
Herbal & Ayurvedic
Formulations
