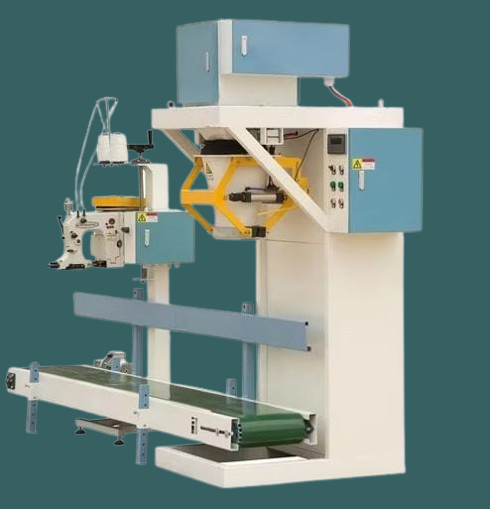

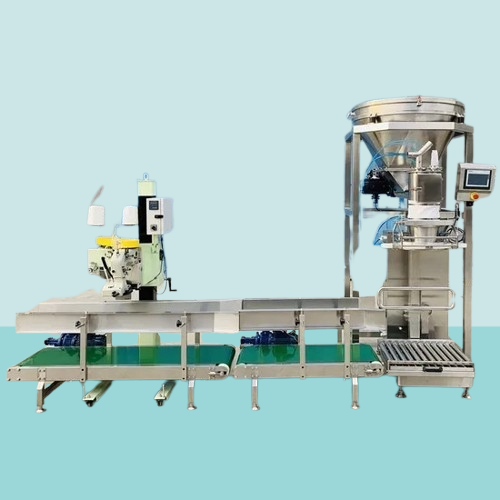

Small Bag Filling System
Our semi-automatic filling system is designed for precise weighing, filling, stitching, sealing of different bag size ranging from 20 kg to 100 kg with some manual Intervention. These system is ideal for packaging various product like chemical powder, Detergent, sugar, salt, Pet food, Fertilizer, Paint, Resins, Plastic, Ground Minerals, Carbon Black , zinc oxide etc.
Sygrip Automation Advantage
Precise filling via separate course and fine feeder also available with double control pneumatic feed valve.
Advance control system & Weighing System.
Bag clamping available with pneumatic as well as inflatable type.
Dust free loading with dust collection system.
For settling material vibratory platform are also available.
Integrated design like dust collection, magnetic separator, metal detector with rejection, belt conveyor and roller conveyor are also available.
Parameters/Specifications
| Specifications | Value |
|---|---|
|
Model No. |
SBFS-020/SBFS-025/SBFS-050/SBFS-100 |
|
Operation Mode |
a) Semi-Automatic Gross Weight Filling |
|
Bag Material |
Woven/ Poly Propylene bag/Paper Bag(also Available with drum with linear filling machine ) |
|
Filling Capacity |
40-120 bag / hr |
|
Weighing
Range |
20-100 kg |
|
Filling accuracy |
+/- 0.01% |
|
Power
Consumption |
As per system |
|
Air Supply |
6 bar filter regulator air supply for
Pneumatic instruments |
|
Material of
Construction |
Carbon Steel/ SS304/SS316 |
Commonly use in Below Industries
Food Industry
Pharmaceutical Industry
Paint Industry
Chemical Industry
Cement industry
Plastic & Resins industry
